This is the Home Page of the Hydrocarbon Potential of the Infra-salt Strata in Kwanza and Congo Basins workshop prepared to Sonangol's geoscientists.
If you click on the interlinks (underlined text and bots), you can navigate and you will find a text and the majority of the plates shown during the workshop.

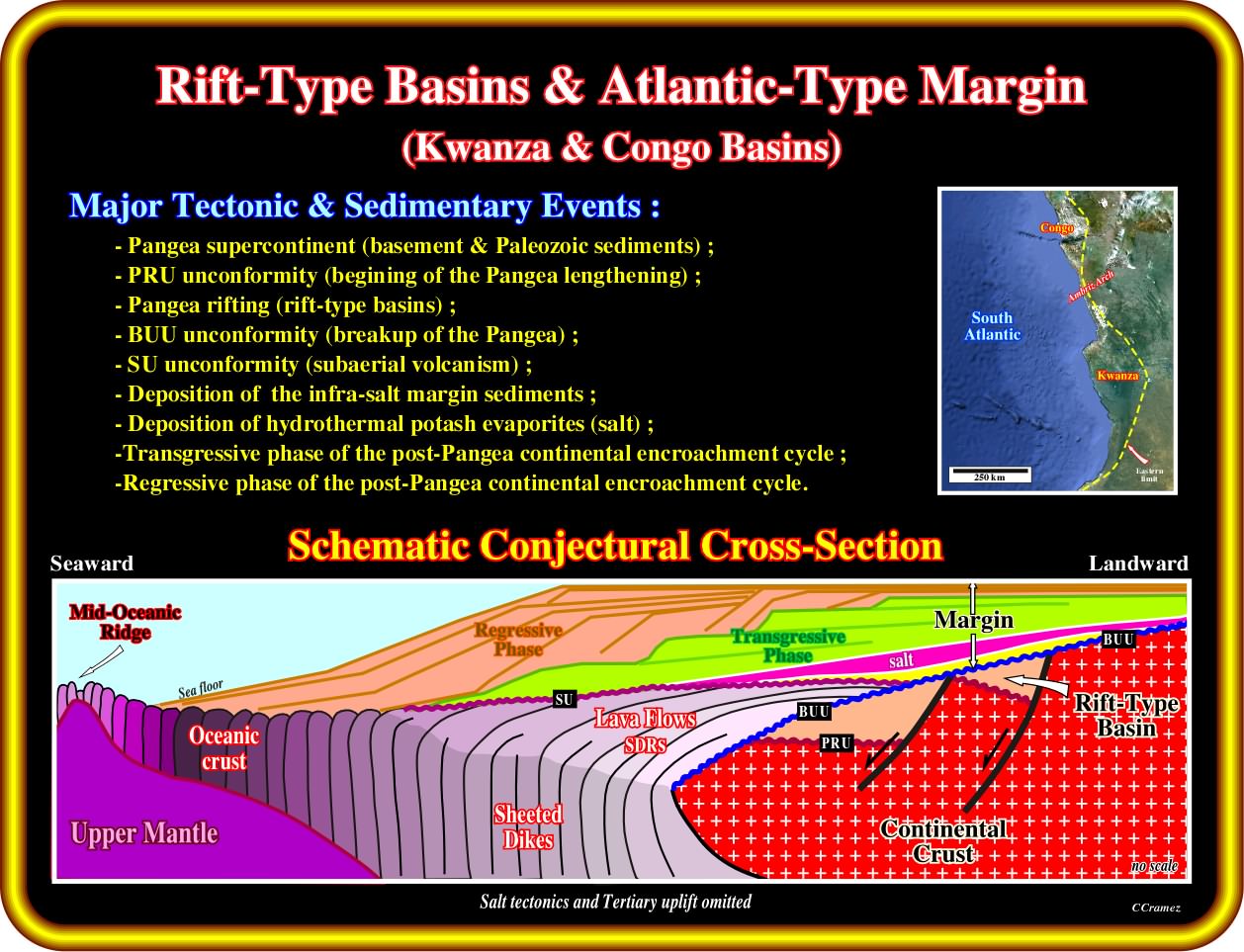

his schematic geological cross-section of Angola offshore is representative of the majority of the Atlantic-type divergent margins. It illustrates the main geological features allowing to understand the different petroleum systems occurring, particularly, in South Atlantic divergent margins : (i) Pre-Pangea rocks (Precambrian granite-gneiss basement, volcanic rocks an/ or Paleozoic sediments, more or less, metamorphosed), which lie underneath the pre-rifting unconformity (PRU), in blue in the cross-section ; (ii) The rift-type basins developed during the lengthening of the Pangea supercontinent ; (iii) The breakup unconformity (BUU), which highlight the upper limit of the rift-type basins, in which organic rich lacustrine shales with a parallel internal configuration are potential source-rocks (organic matter type I) ; (iv) The SDRs (seaward dipping reflectors), which, generally, do not have any generating hydrocarbon potential (just 5 m of lacustrine shales are known in Austral basin) ; (v) The BUU is fossilized by SDRs (subaerial volcanism) or by margin infra-salt sediments (forming the mistakenly called by some American geoscientists "sag basin") ; (vi) The Loeme salt basin, which is a twin of the Brazilian salt basin, that is to say, that both basins have always been individualized ; (vii) The transgressive (backstepping) and regressive (forestepping) phases of the post-Pangea continental encroachment cycle ; (v) The interface between these sedimentary phases, correspond to the emplacement of potential marine source-rocks (organic matter type-II) ; (vi) Potential dispersive source rocks (organic matter type III) are possible in the regressive sedimentary interval.
click on the underlined text
Kwanza & Congo Basins
by
Carlos Cramez
with collaboration of
Lumen Sebastião (Sonangol) & Adriano Sebastião (Sonangol)
to continue press
