Exploration Wells & Stratigraphic Results
a) Exploration & Development Wells
Three oil companies explore the onshore of the Kwanza geographic basin : Sinclair, between 1910 and 1925 ; Petrangol (subsidiary of Petrofina, which, few years ago was bought by Total and (iii) Total CAP (a subsidiary of Total), between 1968 and 1975. Sinclair using the surface geology, drilled ten (10) wells. Some of them (especially in the area of Rio Dande) show traces of oil. Only non-economic accumulations were found. Petrangol shot around 6000 km of seismic lines and drilled 150 wells (exploration and development). Seven (7) commercial oilfields were found (figure 039):
(A) Benfica (1955) with about 15 Mb in situ and about 3 Mb of recoverable reserves ;
(B) Luanda (1956) with about 20 Mb, in situ, and 2 Mb of recoverable reserves ;
(C) Galinda (1959) about 100 Mb, in situ, and around 2 Mb of recoverable reserves ;
(D) Cacuaco (1960) with 5-10 Mb, in situ, and about 0.1 Mb of recoverable reserves ;
(E) Tobias (1961) with around 90 Mb, in situ, and, more or less, 30 Mb of recoverable reserves ;
(F) South Mulenvos (1966) with 25-100 Mb, in situ, and around 12-20 Mb of recoverable reserves ;
(G) North Quenguela (196,7) with 200 Mb, in situ, and about 40 Mb of recoverable reserves ;
(H) Bento (1972) with about 15 Mb, in situ, and around 5 Mb of recoverable reserves.

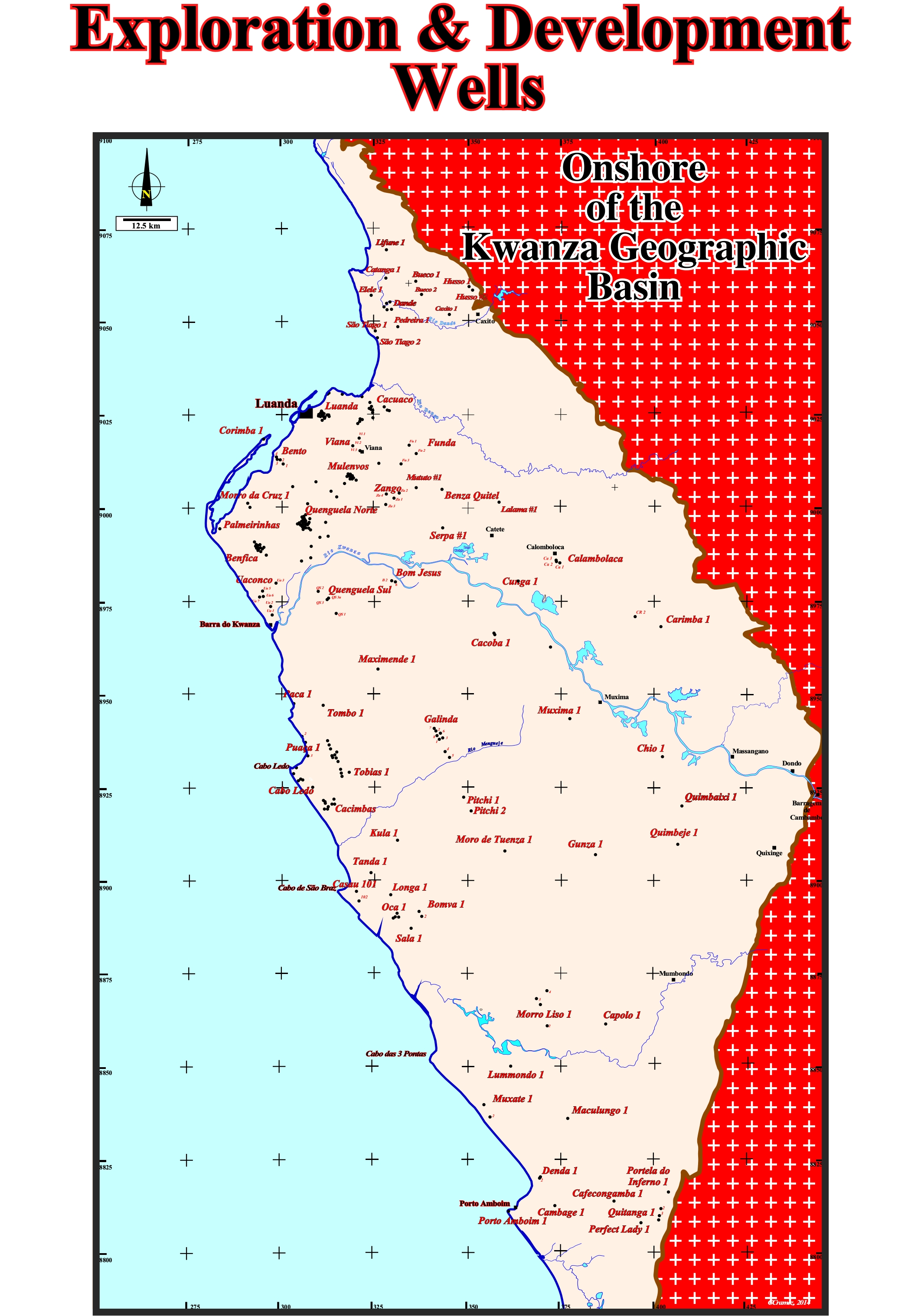

Figure 036- Location of the Exploration and Development wells drilled in the onshore of the Kwanza geographic basin. The location of some of these wells, particualarly, the older ones (Wells drilled by Sinclair), can be not quite exact.
Total CAP shot about 4300 km of seismic and drilled 15 wells in the eastern part of thse bain that was rendered by Petrangol. Two of these wells, namely, (i) Chio # 1, 1970, TD = 3077 m and(ii) Banza Quitel # 1, 1974, TD = 2162 m, they put in evidence non-economic accumulations. The wells drilled between 1968 and 1972 are very significant. They recognized all sedimentary intervals and some of them reached the basement: a) Chio # 1, 1970, TD = 3077 m ; b) Quimbeje # 1, 1970, TD = 2356 m ; c) Calamboloca # 1, 1971, TD = 4411 m ; d) Carimba # 2, 1971 TD = 1879 m ; e) Caxito # 1, 1972, TD = 656 m. The other wells, namely: 1) Calamboloca # 2, 1972, TD = 1424 m ; 2) Calamboloca # 3, 1974, TD = 1850 m ; 3) Lalama # 1, 1974, TD = 1254 m ; 4) Serpa # 1, 1974, TD = 1880 m ; 5) Pedreira # 1, 1974, TD = 1640 m ; 6) Katanga # 1, 1974, TD = 1480 m ; 7) Morro da Cruz # 1, 1974, TD = 2994 m ; 8) Palmeirinhas # 1, 1974, TD = 2339 m ; 9) Taguelogue # 1, 1974, TD = 1239 m, are not significant. They are shallow wells testing a single objective and drilled mainly to use a rig that Total CAP bought in South Africa (1973).
Taking into account the tendency of geoscientists in field and in monitoring the drilling to give different names, often, to the same geological formation, we will try to simplify the formation stratigraphy in order to calibrate the seismic data.
Quelo.................................................Quelo.......................................Quaternary
Quaternário
Luanda..............................................Luanda.......................Pliocene -Pleistocene
Cacuaco
Quifangondo.................................................Quifangondo.......................................Oligocene - Miocene
(Ouidabele, Bom Jesus, Funda, Areias do Chio)
Cunga..................................................Cunga.......................................Upper Eocene
(Margas Negras, Kwanza)
Gratidão......................................................Gratidão.......................................Middle & L. Eocene
Rio Dande..........................................Rio Dande................................................Paleocene
(Facies Septaria, Cacembe)
Teba......................................................Cabo Ledo...................Campanian/Maastrichian
(Grés das Sepulturas, Upper Teba)
N'Golome...........................................N'Golome................................................Santonian
Itombe.............................................................Itombe........................................Coniacian / Turonian
(Upper, Middle & Lower Itombe)
Cabo Ledo................................................Cabo Ledo.................................................Cenomanian
Mucanzo..............................................Mucanzo......................................................Albian
(Catumbela, Cacoba, Quissonde, Dolomite do Caio, Tuenza,
Dolomitic Tuenza, Anhydrite Tuenza, Saliferous Tuenza
Kwanza Conglomerate, Dondo, Fácies Benfica
Upper Quianga, Lower Quianga, Fácies Lagunares)
Binga...........................................................Binga..............................................................Aptian
(Upper Binga, Oolithic Binga, Sublithographic Binga, Lower Binga)
Sal.................................................................Salt..................................................................Aptian
(Penesaline 1, Penesaline 2)
Cuvo.............................................................Cuvo..........................Jurassic / Lower Cretaceous
(Caculaca, Grey Cuvo)
Infra-Cuvo (margin)....................................Cuvo........................................Jurassic / L. Cretaceous
(Denda, Red Cuvo, Fácies Dondo, Maculongo Shales,
Maculungo Sands, Maculongo Saliferous, Maculungo Conglomerate)
Infra-Cuvo (rift basin).................................Infra-Cuvo.......................................Jurassic / L. Cretaceous
(Denda, Basal Red Sediments)
Basement............................................Basement...............................................Pre-Jurassic
a) Exploration & Development Wells
The stratigraphic results of the main exploration wells can be summarized in terms of geological formations, using the simplified stratigraphy previously defined.
Benfica-1 (TD = 3520 m) ; Lat. 9° 08' 47'' South ; Long. 13° 07' 25'' East.
Quelo.........................................(0005-0094 m)............................089 meters ;
Luanda......................................(0094-0365 m)............................270 meters ;
Quifangondo...........................(0365-0557 m)............................192 meters ;
Cunga/Gratidão.....................(0557-0700 m)............................143 meters ;
Rio Dande/Teba....................(0700-0942 m)............................242 meters ;
N'Golome.................................(0942-1012 m)............................070 meters ;
Itombe......................................(1012-1266 m)............................254 meters ;
Cabo Ledo................................(1266-1512 m)............................246 metros ;
Quissonde/Catumbela........(1512-1653 m)............................141 meters ;
Tuenza Dolomitico...............(1653-2060 m)............................407 meters ;
Tuenza Anidritico.................(2060-2367 m)............................307 meters ;
Tuenza Salifero......................(2367-2569 m)............................202 meters ;
Binga.........................................(2569-2705 m)............................136 meters ;
Penesalino 1...........................(2705-2741 m)............................036 meters ;
Sal..............................................(2741-3171 m).............................430 meters ;
Penesalino 2...........................(3171-3174 m)............................003 meters ;
Cuvo..........................................(3174-3300 m).............................126 meters ;
Denda.......................................(3300-3520 m).............................220 meters ;Benfica-2 (TD = 3376 m) ; Lat. x° xx' xx'' South ; Long. x° xx' xx'' East.
Quelo.........................................(0000-0090 m)............................090 meters ;
Luanda......................................(0090-0406 m)............................316 meters ;
Quifangondo...........................(0365-0557 m)............................211 meters ;
Cunga/Gratidão.....................(0557-0700 m)............................135 meters ;
Rio Dande/Teba.....................(0700-0942 m)............................303 meters ;
N'Golome..................................(0942-1012 m)............................195 meters ;
Itombe.......................................(1012-1266 m)............................393 meters ;
Cabo Ledo.................................(1266-1512 m)...........................913 metros ;
Tuenza.......................................(1512-1653 m)...........................223 meters ;
Facies Benfica.........................(1653-2060 m)............................411 meters ;
Sal...............................................(2060-2367 m)............................196 meters ;
Facies Dondo...........................(2367-2569 m)............................202 meters ;Benfica-6 (TD = 3529 m) ; Lat. x° xx' xx'' South ; Long. x° xx' xx'' East.Quelo.........................................(0005-0094 m)............................089 meters ;
Luanda......................................(0094-0365 m)............................271 meters ;
Quifangondo...........................(0365-0557 m)............................192 meters ;
Cunga/Gratidão.....................(0557-0700 m).............................143 meters ;
Rio Dande/Teba....................(0700-0942 m)............................242 meters ;
N'Golome.................................(0942-1012 m)............................070 meters ;
Itombe......................................(1012-1266 m)............................254 meters ;
Cabo Ledo................................(1266-1512 m)............................246 metros ;
Quissonde/Catumbela........(1512-1653 m)............................141 meters ;
Tuenza Dolomitico...............(1653-2060 m)............................407 meters ;
Tuenza Anidritico.................(2060-2367 m)............................307 meters ;
Tuenza Salifero......................(2367-2569 m)............................202 meters ;
Sal...............................................(2569-3171 m)............................202 meters ;
Penesalino 2...........................(3171-3174 m)............................003 meters ;
Cuvo...........................................(3174-3300 m)............................126 meters ;
Denda.......................................(3300-3520 m).............................220 meters ;Bento-1 (TD = 2321 m) ; Lat. 8° 55' 49'' South ; Long. 13° 10' 37'' East.Quelo.........................................(0006-0008 m)....................... ....002 meters ;
Luanda......................................(0008-1280 m).........................1272 meters ;
Quifangondo...........................(1280-1875 m)............................595 meters ;
Margas Negras........................(1875-2004 m)...........................129 meters ;
Rio Dande/Cabo Ledo..........(2004-2192 m)............................188 meters;
Quissonde................................(2192-2279 m)............................087 meters ;
Catumbela................................(2279-2301 m)............................022 meters ;
Tuenza/Cacoba......................(2301-2321 m)............................020 metros ;Bento-2 (TD = 3148 m) ; Lat. 8° 56' 20'' South ; Long. 13° 10' 53'' East.Quelo.........................................(0006-0030 m)............................024 meters ;
Luanda......................................(0030-1500 m).........................1470 meters ;
Quifangondo...........................(1500-1940 m)............................440 meters ;
Cunga/Teba.............................(1940-2860 m)............................920 meters ;
Sal...............................................(2860-2944 m)............................084 meters ;
Penesalino...............................(2944-2947 m)............................003 meters ;
Cuvo...........................................(2947-3013 m)............................066 meters ;
Denda........................................(3013-3148 m)............................134 meters ;
Basement.................................(3147-1500 m)............................001 meters ; GneissBenza Quitele-1 (TD = 2162 m) ; Lat. xx° xx' xx'' South ; Long. xx° xx' xx'' East.
Quelo.........................................(000o-0024 m)............................024 meters ;
Bom Jesus................................(0024-0072 m)............................048 meters ;
Funda........................................(0072-0209 m)............................137 meters ;
Quinfandongo.........................(0209-1987 m).........................1778 meters ;
Margas Negras........................(1987-2162 m)............................175 meters ;Bom Jesus-1 (TD = 3407 m) ; Lat. 9° 13' 27'' South ; Long. 13° 27' 19'' East.
Quifangondo............................(0006-0215 m)...........................215 meters ;
Cunga.........................................(0215-0305 m)...........................090 meters ;
Gratidão....................................(0305-0375 m)...........................070 meters ;
Rio Dande/Teba.....................(0375-0782 m)...........................407 meters ;
N'Golome..................................(0782-0832 m)...........................407 meters ;
Itombe.......................................(0832-1156 m)...........................324 meters ;
Cabo Ledo.................................(1156-1570 m)...........................414 meters ;
Tuenza.......................................(1570-2494 m)...........................924 meters ;
Binga..........................................(2494-2671 m)...........................177 meters ;
Sal................................................(2671-3265 m)..........................596 meters ;
Cuvo............................................(3265-3387 m)...........................122 meters ;
Basement..................................(3387-3407 m)...........................020 meters ;Cabo Ledo-1A (TD = 2813 m) ; Lat. 9° 41' 43'' South ; Long. 13° 12' 13'' East.
Tuenza.......................................(0004-0390 m)............................386 meters ;
Catumbela................................(0390-0940 m)............................550 meters ;
Quissonde................................(0940-1015 m)............................075 meters ;
Cabo Ledo.................................(1015-1741 m)............................716 meters ;
Quissonde.................................(1741-1755 m)............................014 meters ;
Catumbela................................(1755-2490 m)............................735 meters ;
Tuenza.......................................(2490-2802 m)............................312 meters ;
Cuvo............................................(2802-2813 m)............................001 meters ;
Basement..................................(2803-1653 m)............................010 meters ; VolcanismCabo Ledo-3 (TD = 2329 m) ; Lat. 9° 43' 11'' South ; Long. 13° 15' 09'' East.
Catumbela................................(0003-0248 m)............................245 meters ;
Quianga Sup.............................(0248-0680 m)...........................432 meters ;
Quianga Inf...............................(0680-0809 m)...........................129 meters ;
Salt..............................................(0809-2320 m)..........................1511 meters;
Basement..................................(2320-2329 m)...........................009 meters ; DoleriteCacimbas-1 (TD = 1200 m) ; Lat. 9° 46' 58'' South ; Long. 13° 17' 20'' East.
Kwanza......................................(0003-0020 m)...........................017 meters ;
Teba............................................(0020-0246 m)...........................226 meters ;
Cal Rock....................................(0246-0253 m)............................007 meters ;
Salt..............................................(0253-2320 m)............................947 meters;Cacoba-1 (TD = 1772 m) ; Lat. 9° 20' 45'' South ; Long. 13° 41' 56'' East.Itombe Sup..............................(0003-0270 m)............................270 meters ;
Itombe Med.............................(0270-0695 m)............................425 meters ;
Itombe Inf................................(0695-0760 m)............................065 meters ;
Dobo..........................................(0760-1772 m)...........................1012 meters;Cacuaco-2 (TD = 2499 m) ; Lat. x° xx' xx'' South ; Long. xx° xx' xx'' East.
Quinfangondo.........................(0000-0290 m)............................290 meters ;
Cunga.........................................(0290-0460 m)............................170 meters ;
Gratidão....................................(0460-0510 m)............................050 meters ;
Rio Dande/Teba.....................(0510-1390 m)............................880 meters ;
N'Golome..................................(1390-1467 m)............................077 meters ;
Itombe.......................................(1467-1717 m)............................251 meters ;
Cabo Ledo.................................(1717-2242 m)...........................525 meters ;
Salt..............................................(2244-2482 m)...........................240 meters ;
Cuvo/Calucala.........................(2482-2499 m)...........................016 meters ;
Basement..................................(2498-2499 m)...........................001 meters ;Cacuaco-5 (TD = 2527 m) ; Lat. 8° 48' 15'' South ; Long. 13° 23' 40'' East.Quinfangondo.........................(0000-0335 m)............................335 meters ;
Cunga.........................................(0335-0555 m)............................220 meters ;
Gratidão....................................(0555-0610 m)............................055 meters ;
Rio Dande/Teba.....................(0610-1465 m)............................850 meters ;
N'Golome..................................(1465-1532 m)............................067 meters ;
Itombe.......................................(1532-1895 m)............................353 meters ;
Salt..............................................(1895-2515 m)............................620 meters ;
Cuvo/Calucala.........................(2515-2525 m)............................010 meters ;
Basement..................................(2525-2527 m)...........................002 meters ;Cacuaco-6 (TD = 2518 m) ; Lat. 8° 48' 42'' South ; Long. 13° 24' 09'' East.
Quifangondo............................(0003-0295 m)............................292 meters ;
Cunga.........................................(0295-0430 m)............................135 meters ;
Gratidão....................................(0430-0500 m)............................070 meters ;
Rio Dande/Teba.....................(0500-1285 m)............................785 meters ;
N'Golome..................................(1285-1357 m)............................067 meters ;
Itombe.......................................(1357-1798 m)............................441 meters ;
Cabo Ledo.................................(1798-2332 m)............................534 meters ;
Facies Lagunares....................(2332-2417 m)...........................085 meters ;
Sal................................................(2417-2492 m)...........................075 meters ;
Cuvo/Calucala.........................(2492-2514 m)............................022 meters ;
Basement..................................(2514-2518 m)...........................004 meters ;Cacuaco-7 (TD = 2440 m) ; Lat. 8° 47' 23'' South ; Long. 13° 23' 54'' East.Quifangondo............................(0000-0350 m)............................350 meters ;
Cunga.........................................(0350-0520 m)............................170 meters ;
Gratidão....................................(0520-0590 m)............................070 meters ;
Rio Dande/Teba.....................(0590-1828 m).........................1233 meters ;
N'Golome..................................(1828-1925 m)............................096 meters ;
Itombe.......................................(1925-2310 m)............................380 meters ;
Cabo Ledo.................................(2310-2422 m)............................112 meters ;
Sal................................................(2422-2424 m)...........................002 meters ;
Cuvo/Calucala.........................(2424-2427 m)............................003 meters ;
Basement..................................(2427-2440 m)...........................013 meters ;Cacuaco-9 (TD = 2175 m) ; Lat. 8° 48' 17'' South ; Long. 13° 26' 15'' East.
Cacuaco.....................................(0005-0027 m)............................022 meters ;
Quifangondo...........................(0027-0558 m)............................551 meters ;
Cunga.........................................(0558-0751 m)............................193 meters ;
Gratidão....................................(0751-0796 m).............................045 meters;
Rio Dande/Teba.....................(0796-1823 m).........................1027 meters ;
N'Golome..................................(1823-1890 m)............................067 meters ;
Itombe.......................................(2310-2422 m).............................285 meters;Cacuaco-10 (TD = 2421 m) ; Lat. 8° 47' 59'' South ; Long. 13° 25' 54'' East.
Quifangondo............................(0003-0455 m)............................452 meters ;
Cunga.........................................(0455-0650 m)............................195 meters ;
Gratidão....................................(0650-0680 m)............................030 meters ;
Rio Dande/Teba.....................(0680-1645 m)............................965 meters ;
N'Golome..................................(1645-1728 m)............................083 meters ;
Itombe.......................................(1728-2012 m)............................284 meters ;
Cabo Ledo.................................(2012-2333 m)............................321 meters ;
Sal................................................(2333-2415 m)...........................082 meters ;
Cuvo............................................(2415-2417 m)............................002 meters ;
Basement..................................(2417-2421 m)............................004 meters ;Cacuaco-11 (TD = 2391 m) ; Lat. x° xx' xx'' South ; Long. xx° xx' xx'' East.
Quifangondo............................(0004-0450 m)............................446 meters ;
Cunga/Gratidão......................(0450-0591 m)............................141 meters ;
Rio Dande/Teba.....................(0591-1390 m)............................709 meters ;
N'Golome..................................(1390-1482 m)............................092 meters ;
Itombe.......................................(1482-1757m).............................275 meters ;
Cabo Ledo.................................(1757-2189 m)............................432 meters ;
Sal................................................(2189-2385 m)...........................196 meters ;
Cuvo............................................(2385-2389 m)............................004 meters ;
Basement..................................(2389-2391 m)............................002 meters ;Cacuaco-12 (TD = 2556 m) ; Lat. 8° 48' 45'' South ; Long. 13° 21' xx'' East.Quifangondo...........................(0005-0478 m)...........................473 meters ;
Cunga/Gratidão......................(0478-0659 m)............................181 meters ;
Rio Dande/Teba.....................(0659-1186 m)............................527 meters ;
N'Golome..................................(1186-1238 m)............................052 meters ;
Itombe.......................................(1238-1579 m)............................341 meters ;
Cacoba.......................................(1579-1829 m)............................250 meters ;
Binga..........................................(1829-1903 m)............................076 meters ;
Penesalino 1............................(1903-1926 m)............................023 meters ;
Sal................................................(1926-2507 m)............................581 meters ;
Penesalino 2............................(2507-2508 m)............................001 meters ;
Cuvo............................................(2508-2540 m)............................032 meters ;
Basement..................................(2540-2556 m)............................016 meters ;Calomboloca-1 (TD = 4438 m) ; Lat. 9° 10' 43'' South ; Long. 13° 51' 34'' East.
Chio............................................(0004-0064 m)............................060 meters ;
Qinfangondo...........................(0064-3123 m)..........................3059 meters ;
Penesalino 2............................(3123-3126 m)............................003 meters ;
Cuvo............................................(3126-3148 m)............................086 meters ;
Denda........................................(3148-4438 m)..........................1290 meters ; Rift-type Basion ?Calomboloca-2 (TD = 4438 m) ; Lat. x° xx' xx'' South ; Long. xx° xx' xx'' East.
Chio............................................(0003-0026 m)............................023 meters ;
Qinfangondo...........................(0026-1424 m)..........................1398 meters ;Cambage-1 (TD = 1666 m) ; Lat. 10° 44' 16'' South ; Long. 13° 50' 33'' East.
Quelo.........................................(0006-0008 m).............................002 meters ;
Gratidão...................................(0008-0030 m).............................022 meters ;
Rio Dande................................(0030-0523 m).............................493 meters ;
Teba ..........................................(0523-1089 m).............................575 meters ;
N'Golome..................................(1089-1117 m)............................019 meters ;
Itombe.......................................(1117-1380 m)............................263 meters ;
Cabo Ledo.................................(1380-1442 m)............................062 meters ;
Quissonde.................................(1442-1599 m)............................157 meters ;
Penesalino 2............................(1599-1600 m)............................001 meters ;
Cuvo............................................(1600-1604 m)............................004 meters ;
Denda........................................(1604-1617 m).............................013 meters ;
Basement..................................(1617-1666 m)............................049 meters ; DoleriteCapolo-1 (TD = 1932 m) ; Lat. 10° 18' 09'' South ; Long. 13° 58' 06'' East.Gratidão...................................(0005-0092 m).............................087 meters ;
Rio Dande................................(0092-1055 m).............................963 meters ;
Teba ..........................................(1055-1736 m).............................681 meters ;
Saline.........................................(1736-1903 m)............................167 meters ;
Penesalino 2............................(1903-1910 m)............................008 meters ;
Basement.................................(1910-1932 m).............................022 meters ;Carimba-2 (TD = 2489 m) ; Lat. 9° 18' 38'' South ; Long. 14° 02' 35'' East.
Teba............................................(0004-0229 m)............................225 meters ;
N'Golome..................................(0229-0279 m)............................050 meters ;
Itombe.......................................(0279-1019 m)............................740 meters ;
Cabo Ledo.................................(1019-2013 m)............................994 meters ;
Mucanzo....................................(2031-2383 m)...........................370 meters ;
Binga..........................................(2383-2421 m)............................038 meters ;
Penesalino 1............................(2421-2431 m)............................010 meters ;
Salt..............................................(2431-2485 m)............................054 meters ;
Basement..................................(2485-2489 m)............................004 meters ;Casau-102 (TD = 1062 m) ; Lat. 9° 59' 45'' South ; Long. 13° 21' 54'' East.
Gratidão....................................(0001-0061 m)............................060 meters ;
Rio Dande.................................(0061-0205 m)............................144 meters ;
Teba ...........................................(0205-0700 m)............................495 meters ;
N'Golome..................................(0700-0738 m).............................038meters ;
Itombe.......................................(0738-0928 m)............................190 meters ;
Cabo Ledo.................................(0928-0951 m)............................023 meters ;
Quissonde.................................(0951-0965 m)............................014 meters ;
Cap Rock...................................(0965-0973 m)............................008 meters ;
Salt..............................................(0973-1062 m)............................089 meters ;Catanga-1 (TD = 1481 m) ; Lat. xx° xx' xx'' South ; Long. xx° xx' xx'' East.
Quaternario.............................(0005-0054 m)...........................051 meters ;
Teba............................................(0054-0325 m)...........................271 meters ;
N'Golome .................................(0325-0370 m)............................055 meters ;
Itombe.......................................(0370-0614 m)............................244 meters ;
Cabo Ledo.................................(0614-1641 m)...........................229 meters ;
Catumbela................................(0641-0843 m)...........................018 meters ;
Mucanzo....................................(0843-0861 m)...........................429 meters ;
Binga..........................................(1280-1336 m)...........................056 meters ;
Penesalino 1............................(1336-1352 m)...........................016 meters ;
Salt..............................................(1352-1368 m)...........................016 meters ;
Cuvo Cinzento.........................(1368-1447 m)............................079 meters ;Caxito-1 (TD = 0655 m) ; Lat. xx° xx' xx'' South ; Long. xx° xx' xx'' East.Cabo Ledo.................................(0004-0114 m)...........................110 meters ;
Mucanzo....................................(0114-0604 m)...........................490 meters ;
Binga..........................................(0604-0638 m)...........................034 meters ;
Penesalino 1............................(0638-0645 m)...........................007 meters ;
Basement.................................(0645-0655 m)............................010 meters ;Chio-1 (TD = 3077 m) ; Lat. 9° 40' 36'' South ; Long. 14° 04' 52'' East.
Cunga.........................................(0000-0446 m)............................446 meters ;
Gratidão....................................(0446-0796 m)............................350 meters ;
Rio Dande.................................(0796-1217 m)............................421 meters ;
Teba............................................(1217-2823 m).........................1606 meters ;
Penesalinio 2...........................(2823-2831 m)...........................008 meters ;
Cuvo............................................(2831-2850 m)...........................019 meters ;
Denda.........................................(2850-3053 m)...........................203 meters ;
Basement.................................(3053-1336 m)............................024 meters ; Metamorphic RocksCunga-1 (TD = 3689 m) ; Lat. 9° 12' 38'' South ; Long. 13° 42' 28'' East.
Quifangondo............................(0006-0156 m)...........................149 meters ;
Cunga/Gratidão.....................(0156-0339 m)............................183 meters ;
Rio Dande................................(0339-0397 m)............................058 meters ;
Teba...........................................(0397-0899 m)............................502 meters ;
N'Golome.................................(0899-0978 m)............................052 meters ;
Itombe......................................(0978-1624 m)............................646 meters ;
Cabo Ledo................................(1624-1861 m)............................237 metros ;
Quissonde................................(1861-1873 m)............................012 meters ;
Catumbela...............................(1873-2025 m)............................152 meters ;
Tuenza/Cacoba......................(2025-2683 m)............................658 meters ;
Binga Sup.................................(2683-2715 m).............................032meters ;
Peensalino 1............................(2715-2749 m)...........................034 meters ;
Salt..............................................(2749-3545 m)...........................796 meters ;
Denda........................................(3545-3689 m)............................144 meters ;Denda-1 (TD = 2736 m) ; Lat. 10° 40' 16'' South ; Long. 13° 48' 26'' East
Teba...........................................(0006-0240 m)............................234 meters ;
N'Golome.................................(0240-0300 m)............................060 meters ;
Itombe......................................(0300-0664 m)............................364 meters ;
Cabo Ledo 1............................(0664-0913 m)............................249 meters ;
Quissonde 1............................(0913-0979 m)............................066 meters ;
Catumbela 1............................(0979-1078 m)............................099 meters ;
Cacoba 1...................................(1078-1350 m)............................272 meters ;
Cabo Ledo 2.............................(1350-1493 m)...........................143 metros ;
Quissonde 2............................(1493-1544 m)............................051 meters ;
Catumbela 2............................(1544-1683 m)............................138 meters ;
Cacoba 2...................................(1683-1740 m)............................057 meters ;
Sal...............................................(1740-1849m).............................109 meters ;
Cuvo...........................................(1849-1860 m)............................011 meters ;
Denda........................................(1860-2663 m)............................803 meters ;
Basement.................................(2663-2776 m)............................073 meters ; VolcanismDenda-2 (TD = 1855 m) ; Lat. 10° 40' 27'' South ; Long. 13° 48' 15'' East
Teba...........................................(0006-0119 m)............................113 meters ;
N'Golome.................................(0119-0168 m)............................049 meters ;
Itombe......................................(0168-0657 m)............................489 meters ;
Cabo Ledo 1............................(0657-0822 m)............................165 meters ;
Quissonde 1............................(0822-0889 m)............................067 meters ;
Catumbela 1............................(0889-0924 m)............................035 meters ;
Cacoba 1...................................(0924-1076 m)............................152 meters ;
Cabo Ledo 2.............................(1076-1350 m)...........................274 metros ;
Quissonde 2............................(1350-1445 m)............................095 meters ;
Catumbela 2............................(1445-1666 m)............................221 meters ;
Cacoba 2...................................(1666-1831 m)............................165 meters ;
Sal...............................................(1831-1833m).............................002 meters ;
Cuvo Cinzento.........................(1833-1844 m)............................011 meters ;
Cuvo Vermelho.......................(1844-1855 m)............................011 meters ;Funda-1 (TD = 3050 m) ; Lat. 8° 53' 36'' South ; Long. 13° 25' 35'' East
Quelo.........................................(0000-0050 m)............................050 meters ;
Quifangondo...........................(0050-2666 m)..........................2616 meters ;
Cuvo...........................................(2666-3050m).............................384 meters ; Margas NegrasFunda-3 (TD = 2925 m) ; Lat. 8° 55' 40'' South ; Long. 13° 28' 22'' EastQuelo.........................................(0006-0044 m)............................038 meters ;
Quifangondo...........................(0044-1506 m).........................1462 metros ;
Cunga........................................(1506-1771 m)............................266 meters ;
Rio Dande................................(1771-2769 m)............................998 meters ;
Sal...............................................(2769-2912 m)............................143 meters ;
Denda........................................(2912-2916m).............................004 meters ;
Basement.................................(2916-2952 m)............................036 meters ; Metamorphic RocksGalinda-1 (TD = 3491 m) ; Lat. 9° 36' 34'' South ; Long. 13° 33' 22'' East
Quelo.........................................(0000-0070 m)............................070 meters ;
Teba/Itome.............................(0070-0577 m)............................507 meters ;
Cabo Ledo................................(0577-0896 m)............................319 meters ;
Quissonde/Catumbe............(0896-1085 m)............................189 meters ;
Tuenza Dolomitico...............(1085-1577 m)............................492 meters ;
Tuenza Anidritico.................(1577-1886 m)............................309 meters ;
Tuenza Salifero......................(1886-2127 m)............................241 meters ;
Binga.........................................(2127-2262 m)............................134 metros ;
Penesalino 1...........................(2262-2277 m)............................015 meters ;
Sal...............................................(2277-3459 m).........................1182 meters ;
Penesalino 2............................(3459-3467 m)...........................008 meters ;
Cuvo...........................................(3467-3490 m)............................023 meters ;
Basement.................................(3490-3491 m)............................001 meters ; VolcanismKula-1 (TD = 3163 m) ; Lat. 9° 51' 00'' South ; Long. 13° 27' 28'' East
Quelo.........................................(0000-0010 m)............................010 meters ;
Quifangindo /Cunga.............(0010-0340 m)............................330 meters ;
Gratidão...................................(0340-0450 m)............................110 meters ;
Rio Dande................................(0450-0732 m)............................282 meters ;
Cabo Ledo................................(0732-0954 m)............................222 meters ;
Quissonde................................(0954-2325 m).........................1371 meters ;
Tuenza......................................(2325-3115 m)............................790 meters ;
Sal...............................................(3115-3130 m)............................015 meters ;
Basement.................................(3130-3163 m)............................033 meters ;Lagostas-1 (TD = 2165 m) ; Lat. 8° 45' 05'' South ; Long. 13° 19' 59'' East
Cacuaco.....................................(0003-0046 m)...........................043 meters ;
Quifangondo...........................(0046-0083 m)............................037 meters ;
Cacuaco.....................................(0083-0115 m)...........................032 meters ;
Quifangondo............................(0115-0622 m)...........................507 meters ;
Cunga/Gratidão......................(0622-0702 m)...........................080 meters ;
Rio Dande /Teba....................(0702-0932 m)...........................205 meters ;
N'Golome..................................(0932-0995 m)...........................067 meters ;
Itombe.......................................(0995-1225 m)...........................215 metros ;
Cabo Ledo.................................(1225-1488 m)...........................247 meters ;
Quissonde................................(1488-1535 m)............................047 meters ;
Catumbela................................(1535-1758 m)...........................223 meters ;
Cacoba.......................................(1758-2156 m)...........................398 meters ;
Binga..........................................(2156-2165 m)...........................005 meters ;
Cuvo............................................(3171-3174 m)............................009 meters ;Lalama-1 (TD = 1255 m) ; Lat. 9° 02' 31'' South ; Long. 13° 42' 51'' East
Quinfangondo.........................(0056-0939 m)............................934 meters ;
Margas Negras........................(0939-1255 m)............................316 meters ;Longa-1 (TD = 3070 m) ; Lat. 8° 49' 51'' South ; Long. 13° 16' 43'' East
Quelo..........................................(0006-0010 m)...........................004 meters ;
Cunga/Gratidão......................(0010-0040 m)...........................030 meters ;
Rio Dande/Teba ....................(0040-0367 m)...........................327 meters ;
N'Golome..................................(0367-0411 m)...........................044 meters ;
Itombe.......................................(0411-0662 m)...........................251 meters ;
Cabo Ledo.................................(0662-0949 m)...........................278 meters ;
Quissonde................................(0949-1112 m)...........................172 meters ;
Catumbela................................(1112-1156 m)...........................044 metros ;
Tuenza.......................................(1156-2787 m)........................1631 meters ;
Binga..........................................(2787-2885 m)...........................098 meters ;
Salt..............................................(2885-3055 m)...........................170 meters ;
Cuvo............................................(3055-3057 m)...........................002 meters ;
Basement..................................(3057-3070 m)............................013 meters ; VolcanismLuanda-1 (TD = 2902 m) ; Lat. 8° 49' 52'' South ; Long. 13° 16' 43'' East
Quelo…….............................……(0005-0016 m)...........................009 meters ;
Luanda…….............................…(0016-0040 m)...........................024 meters ;
Cacuaco………........................…(0040-0074 m)...........................034 meters ;
Cunga………............................…(0074-0786 m)...........................712 meters ;
Rio Dande/Teba……….....……(0786-1162 m)...........................284 meters ;
N'Golome……........................…(1162-1222 m)...........................060 meters ;
Itombe………….......................…(1222-1442 m)...........................060 meters ;
Cabo Ledo…………................…(1442-1646 m)............................204 meters ;
Quissonde………...................…(1646-1765 m)............................119 meters ;
Catumbela…………...............…(1765-1813 m)............................048 meters ;
Tuenza ……….....................……(1813-1871 m)............................058 meters ;
Cacoba………..................….……(1871-2202 m)............................331 meters ;
Binga…………......................……(2202-2327 m)............................125 meters ;
Penesalino 1…………...........…(2327-2356 m)............................029 meters ;
Sal……………...........................…(2356-2711 m)............................355 meters ;
Penesalino 2……………........…(2711-2714 m)............................003 meters ;
Cuvo………........................………(2714-2875 m)...........................161 meters ;
Basement………….................…(2875-2902 m)............................007 meters; GneissLuanda-14 (TD = 2912 m) ; Lat. 8° 49' 10'' South ; Long. 13° 17' 54'' East
Quelo…….............................……(0000-0006 m)...........................006 meters ;
Luanda…….............................…(0006-0024 m)...........................024 meters ;
Cacuaco………........................…(0024-0038 m)...........................014 meters ;
Quifangondo………...............…(0038-0648 m)...........................610 meters ;
Cunga/Gratidão………......……(0648-0810 m)...........................162 meters ;
Rio Dande/Teba……............…(0810-1142 m)...........................332 meters ;
N'Golome…………..................…(1142-1212 m)...........................070 meters ;
Itombe………….......................…(1212-1468 m)...........................256 meters ;
Cabo Ledo………....................…(1468-1795 m)...........................327 meters ;
Quissonde…………................…(1795-1840 m)...........................045 meters ;
Catumbela ………..............……(1840-1903 m)............................063 meters ;
Cacoba 1………..............…..……(1903-1935 m)...........................032 meters ;
Catumbela 2………….........……(1935-2012 m)...........................077 meters ;
Tuenza Dolomitico…..........…(2012-2114 m)...........................102 meters ;
Cacoba Marg……………............(2114-2461 m)...........................347 meters ;
Binga…………..............…........…(2461-2575 m)............................114 meters ;
Penesalino 1………..................(2575-2605 m)............................030 meters ;
Sal..............………….................…(2605-2708 m)............................103 meters;
Cuvo …….................................…(2708- 2912 m)............................208 meters;Lumbondo-1 (TD = 2385 m) ; Lat. 10° 24' 13'' South ; Long. 13° 14' 02'' EastGratidão………....................……(0006-0390 m)...........................303 meters ;
Rio Dande…….......................…(0390-0575 m)...........................299 meters ;
Teba…………...........................…(0575-1146 m)...........................571 meters ;
N'Golome…………..................…(1146-1210 m)...........................064 meters ;
Itombe………..........................…(1210-1654 m)...........................444 meters ;
Cabo Ledo…………................…(1654-1771 m)...........................117 meters ;
Quissonde ………...............……(1771-1808 m)...........................037 meters ;
Tuenza Salifero……….............(1808-2312 m)...........................504 meters ;
Binga…………..............…........…(2312-2354 m)...........................042 meters ;
Penesalino 1 & Sal……….......(2354-2380 m)...........................026 meters ;
Basement..............…………......(2308-2385 m)............................005 meters;Maculungo-1 (TD = 4096 m) ; Lat. xx° xx' xx'' South ; Long. xx° xx' xx'' EastQuifangondo………...............…(0006-0386 m)...........................380 meters ;
Maximende-1 (TD = 3228 m) ; Lat. 9° 25' 55'' South ; Long. 13° 24' 30'' East
Cunga/Gratidão……….....……(0386-1243 m)...........................857 meters ;
Rio Dande…….......................…(1243-1295 m)...........................052 meters ;
Teba…………...........................…(1295-1450 m)...........................165 meters ;
N'Golome…………..................…(1450-1833 m)...........................383 meters ;
Sal………..................................…(1833-1878 m)...........................045 meters ;
Cuvo…………...........................…(1878-1896 m)...........................018 meters ;
Maculungo Shale………..........(1896-2273 m)...........................377 meters ;
Maculungo Sal………...............(2273-2470 m)...........................203 meters ;
Maculungo Areias………….....(2470-3140 m)...........................670 meters ;
Maculungo Congl….............…(3140-3542 m)...........................402 meters ;
Basal Red Sedimentos……...(3542-4096 m)...........................554 meters ;
Quelo…….............................……(0005-0065 m)...........................060 meters ;
Quifangondo………...............…(0065-0245 m)...........................180 meters ;
Cunga……….........................……(0245-0500 m)...........................255 meters ;
Gratidão…………....................…(0500-0630 m)...........................130 meters ;
Rio Dande………....................…(0630-0710 m)...........................080 meters ;
Teba…………............................…(0710-0875 m)...........................185 meters ;
N'Golome………..................……(0875-0911 m)...........................036 meters ;
Itombe...………..............…..……(0911-1497 m)...........................586 meters ;
Cabo Ledo………….............……(1497-1767 m)...........................270 meters ;
Quissonde…..........................…(1767-1936 m)...........................169 meters ;
Tuenza…………..........…............(1936-2892 m)...........................956 meters ;
Binga…………..............…........…(2892-3009 m)...........................117 meters ;
Penesalino 1………..................(3009-3303 m)...........................024 meters ;
Sal..............………….................…(3033-3257 m)............................224 meters;
Basement……........................…(3257-3283 m)............................026 meters ; VolcanismMongaichi-1 (TD = 2389 m) ; Lat. 9° 39' 58'' South ; Long. 13° 24' 30'' EastItombe………..........................…(0000-0720 m)...........................720 meters ;
Cabo Ledo…………................…(0720-1197 m)...........................477 meters ;
Tuenza ……….....................……(1197-2236 m).........................1039 meters ;
Sal...............................................(2236-2974 m)............................285 meters ;
Binga…………..............…........…(2236-2388 m)...........................151 meters ;
Sal……….....................................(2388-2390 m)...........................002 meters ;Morro da Cruz-1 (TD = 3156 m) ; Lat. 9° 01' 48'' South ; Long. 13° 51' 09'' EastQuelo…….............................……(0005-0020 m)...........................051 meters ;
Quifangondo………...............…(0065-0245 m)...........................180 meters ;
Cunga……….........................……(0410-0705 m)...........................060 meters ;
Gratidão…………....................…(0705-0705 m)...........................185 meters ;
Rio Dande/Teba……...........…(0890-1215 m)...........................325 meters ;
N'Golome……….....................…(1215-1259 m)...........................044 meters ;
Itombe……….......................……(1259-1357 m)...........................098 meters ;
Cabo Ledo...……….............……(1357-1806 m)............................449 meters ;
Quissonde………….............……(1806-1965 m)...........................159 meters ;
Tuenza Dolomitico….............(1965-2323 m)...........................359 meters ;
Tuenza Anidritico………........(2323-2706 m)...........................383 meters ;
Membro Salifero……….…...…(2706-2740 m)...........................034 meters ;
Binga………................................(2740-2881 m)...........................141 meters ;
Sal..............………….................…(2881-3122 m)............................241 meters;
Cuvo……..................................…(3122-3156 m)...........................034 meters ;Morro Liso-4 (TD = 2730 m) ; Lat. 10° 13' 04'' South ; Long. 13° 49' 38'' East
Cunga……….........................……(0005-0354 m)...........................340 meters ;
Gratidão…………....................…(0354-0426 m)...........................081 meters ;
Rio Dande…….......................…(0426-0480 m)...........................054 meters ;
Teba………...............................…(0480-0900 m)...........................420 meters ;
N'Golome……….........................(0900-1061 m)...........................161 meters ;
Itombe...………....................……(1061-2550 m).........................1489 meters ;
Sal…………............................……(2550-2622 m)...........................072 meters ;
Cuvo….........................................(2622-2640 m)...........................018 meters ;
Denda…….......................…........(2640-2707 m)...........................067 meters ;
Basement…….............….…...…(2707-2730 m)...........................023 meters ; VolcanismMulenvos-1 (TD = 3294 m) ; Lat. 8° 52' 16'' South ; Long. 1° 22' 13'' E
Quelo…….............................……(0003-0006 m)...........................003 meters ;
Luanda…….............................…(0006-0036 m)...........................030 meters ;
Quifangondo………...............…(0036-0618 m)...........................582 meters ;
Cunga/Gratidão………......……(0618-0690 m)...........................072 meters ;
Rio Dande/Teba……............…(0690-1458 m)...........................768 meters ;
N'Golome…………..................…(1458-1540 m)...........................082 meters ;
Itombe………….......................…(1540-2072 m)...........................532 meters ;
Cabo Ledo………....................…(2072-2653 m)...........................581 meters ;
Quissonde…………................…(2653-2772 m)...........................119 meters ;
Cacoba……….................…..……(2797-2792 m)............................020 meters ;
Sal……….....................................(2792-2797 m)............................005 meters ;
Cuvo..............………….............…(2797-2866 m)............................069 meters;
Denda……..............................…(2866- 3294 m)............................428 meters;Muxate-1 (TD = 2637 m) ; Lat. 10° 29' 40'' South ; Long. 13° 40' 07'' EQuelo……................................…(0006-0015 m)...........................009 meters ;
Cacuaco..………......................…(0015-0467 m)...........................452 meters ;
Quifangondo………..................(0467-2544 m).........................2077 meters ;
Sal...………............................……(2544-2552 m)...........................008 meters ;
Penesalino 2…………...............(2552-2560 m)...........................008 meters ;
Cuvo….........................................(2560-2594 m)...........................034 meters ;
Denda…….......................…........(2594-2618 m)...........................024 meters ;
Basement…….............….…...…(2618-2637 m)...........................019 meters ; VolcanismMuxate-2 (TD = 2637 m) ; Lat. xx° xx' xx'' South ; Long. xx° xx' xx'' E
Cacuaco..………......................…(0004-0508 m)...........................504 meters ;
Quifangondo………..................(0508-2442 m).........................1934 meters ;
Sal...………............................……(2442-2455 m)...........................013 meters ;
Penesalino 2…………...............(2455-2463 m)...........................008 meters ;
Cuvo….........................................(2463-2505 m)...........................042 meters ;Muxate-3 (TD = 2450 m) ; Lat. 9° 32' 55'' South ; Long. 13° 54' 30'' East
Rio Dande/Teba……............…(0005-0435 m)...........................430 meters ;
N'Golome……….........................(0435-0465 m)...........................030 meters ;
Itombe...………....................……(0465-1113 m)...........................648 meters ;
Cabo Ledo…………....................(1113-1416 m)...........................303 meters ;
Dondo….....................................(1416-2298 m)...........................882 meters ;
Binga……........................…........(2298-2406 m)...........................108 meters ;
Sal……...........................….…...…(2406-2450 m)...........................044 meters ;Paca-1 (TD = 2086 m) ; Lat. xx° xx' xx'' South ; Long. xx° xx' xx'' EQuelo…….............................……(0003-0020 m)...........................017 meters ;
Luanda…….............................…(0020-0929 m)...........................909 meters ;
Sal………...................................…(0929-1134 m)...........................205 meters ; overhang
Teba……......................…......……(1134-1204 m)...........................070 meters ;
N'Golome/Itombe………….....(1204-1473 m)...........................269 meters ;
Cabo Ledo………....................…(1473-1727 m)...........................246 meters ;
Quissonde…………................…(1727-1860 m)...........................037 meters ;
Catumbela………................……(1860-1869 m)...........................009 meters ;
Tuenza……….............................(1869-2086 m)...........................217 meters ;Pedreira-1 (TD = 1848 m) ; Lat. xx° xx' xx'' South ; Long. xx° xx' xx'' East
Teba...........................................(0005-0210 m)............................205 meters ;
Rio Dande................................(0210-0401 m)............................191 meters ;
Gres das Sepulturas.............(0401-0487 m)............................086 meters ;
Teba...........................................(0487-0680 m)............................207 meters ;
N'Golome.................................(0680-0725 m)............................045 meters ;
Itombe......................................(0725-0946 m)............................221 meters ;
Cabo Ledo................................(0946-1087 m)............................141 meters ;
Catumbela...............................(1087-1108 m)............................021 metros ;
Mucanzo...................................(1108-1108 m)............................475 meters ;
Binga.........................................(1583-1643 m)............................060 meters ;
Penesalino...............................(1643-1661 m)............................018meters ;
Sal...............................................(1661-1739 m)............................078 meters ;
Cuvo Cinzento.........................(1739-1812 m)............................073 meters ;
Cuvo Vermelho.......................(1812-1848 m)............................036 meters ;Petroleo-1 (TD = 2683 m) ; Lat. 9° 40' 33'' South ; Long. 13° 12' 34'' EastCabo Ledo.................................(0005-0147 m)...........................142 meters ;
Quissoinde...............................(0147-0234 m)...........................087 meters ;
Catumbela................................(0234-0594 m)...........................360 meters ;
Tuenza Dolomitico................(0594-0643 m)...........................049 meters ;
Tuenza Anidritico..................(0643-0876 m)...........................233 meters ;
Tuenza Salifero......................(0876-1030 m)............................154 meters ;
Binga..........................................(1030-1244 m)...........................214 meters ;
Quianga Sup............................(1244-1465 m)............................221 metros ;
Cabo Ledo................................(1465-1527 m)............................062 meters ;
Quissonde................................(1527-1600 m)............................073 meters ;
Catumbela................................(1600-2166 m)...........................566 meters ;
Quianga Sup............................(2166-2518 m)............................352 meters ;
Quianga Inf..............................(2518-2674 m)............................156 meters ;
Basement.................................(2674-2682 m)............................008 meters ; volcanismPitchi-1 (TD = 1957 m) ; Lat. 9° 11' 35'' South ; Long. 13° 37' 18'' East
Itombe...………..............…..……(0005-0525 m)...........................586 meters ;
Cabo Ledo………….............……(0525-1018 m)...........................493 meters ;
Tuenza…………..........…............(1018-1915 m)...........................897 meters ;
Binga…………..............…........…(1915-1957 m)...........................402 meters ;Pitchi-2 (TD = 3604 m) ; Lat. 9° 46' 40'' South ; Long. 13° 38' 22'' East
Quelo…….............................……(0006-0046 m)...........................040 meters ;
Quifangondo………...............…(0046-0060 m)...........................014 meters ;
Cunga……….........................……(0060-0098 m)...........................038 meters ;
Gratidão…………....................…(0098-0108 m)...........................010 meters ;
Rio Dande/Teba………........…(0108-0470 m)...........................362 meters ;
Itombe………….......................…(0470-0859 m)...........................389 meters ;
Cabo Ledo………................……(0859-1174 m)...........................315 meters ;
Quissonde...………........…..……(1174-1228 m)...........................054 meters ;
Catumbela…………............……(1228-1251 m)...........................023 meters ;
Tuenza Dolomitico….........…(1251-1312 m)...........................061 meters ;
Sal………...............................…...(1312-1344 m)...........................032 meters ;
Tuenza Dolomitico…………...(1344-1432 m)...........................088 meters ;
Sal……...................…...................(1432-3565 m)........................2133 meters ;
Penesalino 2..............………….(3565-3569 m)............................004 meters;
Cuvo……..................................…(3569-3604 m)...........................035 meters ;Puaca-1 (TD = 2231 m) ; Lat. xx° xx' xx'' South ; Long. xx° xx' xx'' East
Quelo……….........................……(0003-0010 m)...........................007 meters ;
Luanda…………......................…(0010-0070 m)...........................060 meters ;
Quifangondo……..................…(0070-0380 m)...........................310meters ;
Gratidão……….......................…(0380-0415 m)...........................035 meters ;
Teba………...........................……(0415-0573 m)...........................168 meters ;
N'Golome...………...............……(0573-0625 m)...........................052 meters ;
Itombe.......………….............……(0625-0780 m)...........................165 meters ;
Cabo Ledo…..............................(0780-1083 m)...........................303 meters ;
Quissonde……...............…........(1083-1215 m)...........................132 meters ;
Catumbela………............…...…(1215-1225 m)............................010 meters ;
Tuenza……….............................(1225-2094 m)...........................869 meters ;
Binga..............…………...........…(2094-2198 m)............................104 meters;
Basement……........................…(2198-2231 m)...........................033 meters ; Igneous rockQuembeje-1 (TD = 2357 m) ; Lat. 10° 24' 13'' South ; Long. 13°14' 02'' East
N'Golome...………...............……(0004-0047 m)...........................043 meters ;
Itombe.......………….............……(0047-0793 m)...........................746 meters ;
Cabo Ledo…..............................(0793-1969 m).........................1176 meters ;
Penesalino……..............…........(1969-2058 m)...........................089 meters ;
Sal………............…...................…(2058-2167 m)...........................109 meters ;
Cuvo………..................................(2167-2177 m)...........................010 meters ;
Denda..............…………...........…(2177-2345 m)...........................168 meters;
Basement……........................…(2345-2357 m)...........................012 meters ; gneissQuenguela N-2 (TD = 3258 m) ; Lat. xx° xx' xx'' South ; Long. xx° xx' xx'' EastQuelo……….........................……(0006-0020 m)...........................014 meters ;
Luanda…………......................…(0020-0345 m)...........................325 meters ;
Quifangondo……..................…(0345-3097 m)........................2752 meters ;
Sal………..................................…(3097-3109 m)...........................012 meters ;
Penesalino………..................…(3109-3111 m)...........................002 meters ;
Cuvo cinzento...………......……(3111-3229 m)...........................118 meters ;
Cuvo vermelho.................……(3229-3231 m)...........................002 meters ;
Basement…….......................…(3231-3248 m)...........................017 meters ;Quenguela N-4 (TD = 2335 m) ; Lat. xx° xx' xx'' South ; Long. xx° xx' xx'' EastQuelo……….........................……(0006-0015 m)...........................009 meters ;
Luanda…………......................…(0015-0510 m)...........................405 meters ;
Quifangondo……..................…(0510-2275 m)........................1765 meters ;
Cunga………............................…(2275-2335 m)...........................069 meters ; Margas NegrasQuenguela N-51 (TD = 1820 m) ; Lat. xx° xx' xx'' South ; Long. xx° xx' xx'' EastQuelo……….........................……(0000-0015 m)...........................015 meters ;
Luanda…………......................…(0015-0615 m)...........................600 meters ;
Quifangondo……..................…(0615-1820 m)........................1205 meters ;Quenguela S-1 (TD = 2715 m) ; Lat. 9° 17' 57'' South ; Long. 13° 18' 45'' EastQuelo……….........................……(0006-0025 m)...........................019 meters ;
Luanda…………......................…(0025-0348 m)...........................323 meters ;
Quifangondo……..................…(0348-2715 m)........................2367 meters ;Quenguela S-14 (TD = 2715 m) ; Lat. xx° xx' xx'' South ; Long. xx° xx' xx'' East
Quelo……….........................……(0006-0025 m)...........................019 meters ;
Luanda…………......................…(0025-0348 m)...........................323 meters ;
Quifangondo……..................…(0348-2715 m).......................2367 meters ;
Quilondamo -1 (TD = 1827 m) ; Lat. 10° 35' 51'' South ; Long. 13° 52' 19'' East
Cunga/Gratidão………......……(0006-0210 m)...........................204 meters ;
Rio Dande………….................…(0210-0484 m)...........................274 meters ;
Teba……..................................…(0484-0755 m)...........................271 meters ;
N'Golome……….....................…(0755-0990 m)...........................235 meters ;
Itombe……….......................……(0990-1190 m)...........................200 meters ;
Cabo Ledo...………..............……(1190-1277 m)...........................087 meters ;
Quissonde.......…………......……(1277-1347 m)...........................070 meters ;
Catumbela….............................(1347-1431 m)...........................084 meters ;
Tuenza/Cacoba…….....…........(1431-1721 m)...........................290 meters ;
Binga……….......................…...…(1721-1762 m)...........................041 meters ;
Sal………......................................(1762-1800 m)...........................038 meters ;
Cuvo..............…………..............…(1800-1827 m)...........................027 meters ;São Brás-1 (TD = 2973 m) ; Lat. 9° 58' 31'' South ; Long. 13° 18' 52'' East
Quelo…….............................……(0006-0020 m)...........................014 meters ;
Quifangondo………...............…(0020-0075m).............................055meters ;
Cunga……….........................……(0075-0280m).............................205meters ;
Gratidão…………....................…(0280-0410 m)...........................130 meters ;
Rio Dande/Teba……...........…(0410-0550m).............................140 meters ;
N'Golome……….....................…(0550-0587 m)............................082 meters ;
Itombe……….......................……(0587-0812 m)...........................225 meters ;
Cabo Ledo...……….............……(0812-1078 m)............................266 meters ;
Quissonde………….............……(1078-1177m)............................099 meters ;
Catumbela….............................(1177-1950 m)...........................773 meters ;
Tuenza Dolomitico................(1950-2023 m)............................073meters ;
Tuenza Anidritico…......….….(2023-2518 m)...........................495 meters ;
Tuenza Salifero ………............(2718-2809 m)..........................291 meters ;
Binga..............…………............…(2809-2866 m)............................057meters;
Sal …........................................…(2866 -2952m)...........................086 meters ;
Cuvo………...............................…(2952-2972 m)...........................020 meters ;
Basement…….....................……(2972-2973 m)...........................019 meters ; DoleritoSão Tiago-1 (TD = 2069 m) ; Lat. 8° 36' 32'' South ; Long. 13° 24' 23'' East
Cunga……….........................……(0075-0280 m)............................205meters ;
Gratidão………....................……(0139-0262 m)...........................123 meters ;
Rio Dande...……….............……(0262-0937 m)............................675 meters ;
N'Golome…………..............……(0937-1010 m)............................073 meters ;
Itombe…....................................(1010-1220 m)...........................210 meters ;
Cabo Ledo.................................(1220-1385 m)...........................165 meters ;
Catumbela…....................….….(1385-1410 m)...........................025 meters ;
Dondo………..............................(1410-1821 m)...........................414 meters ;
Binga..............…………...........…(1821-1825 m)............................004 meters;
Penesalino 2….....................…(1825 -1830m)............................005 meters ;
Cuvo………..............................…(1800-1919 m)............................086 meters ;
Basement……....................……(1916-2069 m)...........................153 meters ;São Tiago-2 (TD = 1653 m) ; Lat. 8° 37' 31'' South ; Long. 13° 24' 55'' East
Gratidão………....................……(0000-0135 m)...........................135 meters ;
Rio Dande...……….............……(0135-0215 m)............................070 meters ; Fault
Teba…………........................……(0215-0535 m)...........................320 meters ;
N'Golome…...............................(0535-1040 m)...........................505 meters ;
Itombe.......................................(1040-1320 m)...........................280 meters ;
Dondo………..............................(1320-1653 m)...........................333 meters ;
Tanda-1 (TD = 3102 m) ; Lat. 9° 55' 48'' South ; Long. 13° 33' 39'' East
Poço Desviado
Tuenza Dolomitico................(1320-2554 m).........................1252 meters ;
Tuenza Anidritico…......….….(2554-2902 m)...........................348 meters ;
Tuenza Salifero ………............(2902-3031 m)...........................129 meters ;
Binga..............…………............…(3031-3085 m)...........................054 meters;
Penesalino.............................…(3085-3094 m)..........................009 meters ;
Cuvo………...............................…(3094-3102 m)..........................008 meters ;Tobias-1 (TD = 2673 m) ; Lat. 9° 41' 01'' South ; Long. 13° 20' 29'' EastQuelo…….............................……(0006-0020 m)...........................014 meters ;
Teba/N'Golome……….........…(0020-0040 m)............................020 meters ;
Itombe……….......................……(0040-0362 m)...........................322 meters ;
Cabo Ledo………….................…(0362-0548 m)...........................168 meters ;
Quissonde…….......................…(0548-0646 m)...........................098 meters ;
Catumbela………...................…(0646-0664 m)...........................018 meters ;
Tuenza Dolomitico………...…(0664-1157 m)...........................493 meters ;
Tuenza Anidritico...….....……(1157-1474 m)...........................317 meters ;
Tuenza Salifero…………...……(1474-1682m)............................208 meters ;
Binga….......................................(1682-1810 m)...........................128 meters ;
Penesalino 1............................(1810-1841 m)............................031 meters ;
Sal…......…...............................….(1841-2661 m)...........................820 meters ;
Penesalino 2………..................(2661-2664 m)............................003 meters ;
Basement…….....................……(2664-2673 m)...........................009 meters ; VolcanismTobias-11 (TD = 1210 m) ; Lat. 9° 36' 32'' South ; Long. 13° 17' 27'' East
Quissonde…….......................…(???? - ???? m)...........................003 meters ;
Tuenza Dolomitico………...…(???? - ???? m)...........................100 meters ;
Tuenza Anidritico...….....……(???? - ???? m)...........................546 meters ;
Tuenza Salifero…………...……(???? - ???? m)...........................829 meters ;
Binga Sup…...............................(1076-1136 m)............................057meters ;
Facies Oolitico.........................(1085-1146 m)...........................031 meters ; Reverse Fault
Facoes Sublitografico…........(1167-????? m).............................??? meters ;Tobias-12 (TD = 1139 m) ; Lat. 9° 41' 35'' South ; Long. 13° 19' 232'' East
Quissonde…….......................…(0003-0124 m)...........................121 meters ;
Tuenza Dolomitico………...…(0124-0533 m)...........................409 meters ;
Tuenza Anidritico...….....……(0533-0829 m)...........................296 meters ;
Tuenza Salifero…………...……(0829-1020m)............................191 meters ;
Binga Sup…...............................(1020-1028 m)...........................008 meters ;
Facies Oolitico.........................(1028-1044 m)...........................016 meters ;
Facies Sublitografico…......…(1044-1138 m)...........................094 meters ;
Binga Inf………..........................(1138-1139 m)...........................001 meters ;Tombo-1 (TD = 2870 m) ; Lat. xx° xx' xx'' South ; Long. xx° xx' xx'' East
Quelo……................................…(0005-0042 m)...........................037 meters ;
Luanda……….........................…(0042-0992 m)...........................950 meters ;
Quifangondo...…...............……(0992-1443 m)...........................451 meters ;
Sal…………............................……(1443-2846 m)........................1403 meters ;
Basement…...............................(2846-2870 m)...........................024 meters , VolcanismTuenza-1 (TD = 3586 m) ; Lat. 9° 52' 49'' South ; Long. 13° 43' 19'' EastTeba……..................................…(0006-0290 m)...........................284 meters ;
N'Golome……..................…...…(0290-0367 m)...........................077 meters ;
Itombe...…..........................……(0367-0721 m)...........................360 meters ;
Cabo Ledo………….............……(0721-1092m)............................371 meters ;
Tuenza…....................................(1092-1850 m)...........................758 meters ;
Binga..........................................(1850-1923 m)...........................073 meters ;
Salt….......................................…(1923-3530 m).........................1607 meters ;
Cuvo………..................................(3530-3586 m)...........................056 meters ;Uacongo-1 (TD = 32147 m) ; Lat. xx° xx' xx'' South ; Long. xx° xx' xx'' EastLuanda……..........................……(0005-0170 m)...........................165 meters ;
Quinfangondo……...….........…(0170-0405 m)...........................235 meters ;
Cunga……….........................……(0405-0490 m)...........................085 meters ;
Gratidão…………....................…(0490-0585 m)...........................095 meters ;
Rio Dande/Teba……............…(0585-0930 m)...........................355 meters ;
N'Golome……….....................…(0930-0973 m)...........................043 meters ;
Itombe………..........................…(0973-1153 m)...........................180 meters ;
Cabo Ledo...…....................……(1153-1485 m)...........................328 meters ;
Tuenza…………...................……(1485-???.? m)..............................??? meters ;
Sal….............................................(???? -2965 m).............................??? meters ;
Cuvo/Calucala.........................(2965-3108 m)...........................143 meters ;
Basement…..........................….(3108-3147 m)...........................039 meters ; R. Eruptive ;Uacongo-3 (TD = 3058 m) ; Lat. 9° 13' 17'' South ; Long. 13° 09' 53'' EastLuanda……..........................……(0010-0085 m)..........................075 meters ;
Quinfangondo……...….........…(0085-0500 m)...........................415 meters ;
Cunga/Gratidão……….....……(0500-0628 m)...........................128 meters ;
Rio Dande/Teba……...........…(0628-1021 m)...........................393 meters ;
N'Golome……….....................…(1021-1062 m)...........................039 meters ;
Itombe………..........................…(1062-1395 m)...........................333 meters ;
Cabo Ledo...…....................……(1395-1644 m)...........................249 meters ;
Quissonde.................................(1644-1794 m)...........................150 meters ;
Tuenza Lagunar…...............…(1794-2689 m)...........................895 meters ;
Sal….............................................(2689-2974 m)..........................285 meters ;
Cuvo/Calucala.........................(2974-3058 m)...........................084 meters ;Zango-3 (TD = 3147 m) ; Lat. xx° xx' xx'' South ; Long. xx° xx' xx'' East
Quelo…................................……(0005-0035 m)...........................030 meters ;
Luanda ………….........................(0035-0055 m)...........................020 meters ;
Quinfangondo …………...........(0055-0349 m)...........................294 meters ;
Cunga …………............................(0349-0400 m)..........................051 meters ;
Rio Dande …………...................(0400-0510 m)...........................110 meters ;
Teba …………..............................(0510-0959 m)...........................449 meters ;
N'Golome …………....................(0959-1009 m)...........................050 meters ;
Itombe ………….........................(1009-1327 m)...........................318 meters ;
Cabo Ledo …………...................(1327-1571 m)...........................244 meters ;
Quissonde …………...................(1571-1581 m)...........................010 meters ;
Catumbela …………..................(1581-1749 m)...........................168 meters ;
Cacoba ……….............................(1749-2290 m)...........................541 meters ;
Binga………….............................(2290-2383 m)...........................093 meters ;
Penesalino 1……...............……(2383-2406 m)...........................023 meters ;
Sal………..................................…(2406-3080 m)...........................672 meters ;
Penesalino 2………...............…(3080-3084 m)...........................004 meters ;
Cuvo ……..............................……(3084-3178 m)...........................094 meters ;
Dande ….................................…(3178-3318 m)...........................140 meters ;
Basement ……....................……(3318-3348 m)...........................030 meters ; Volcanism
